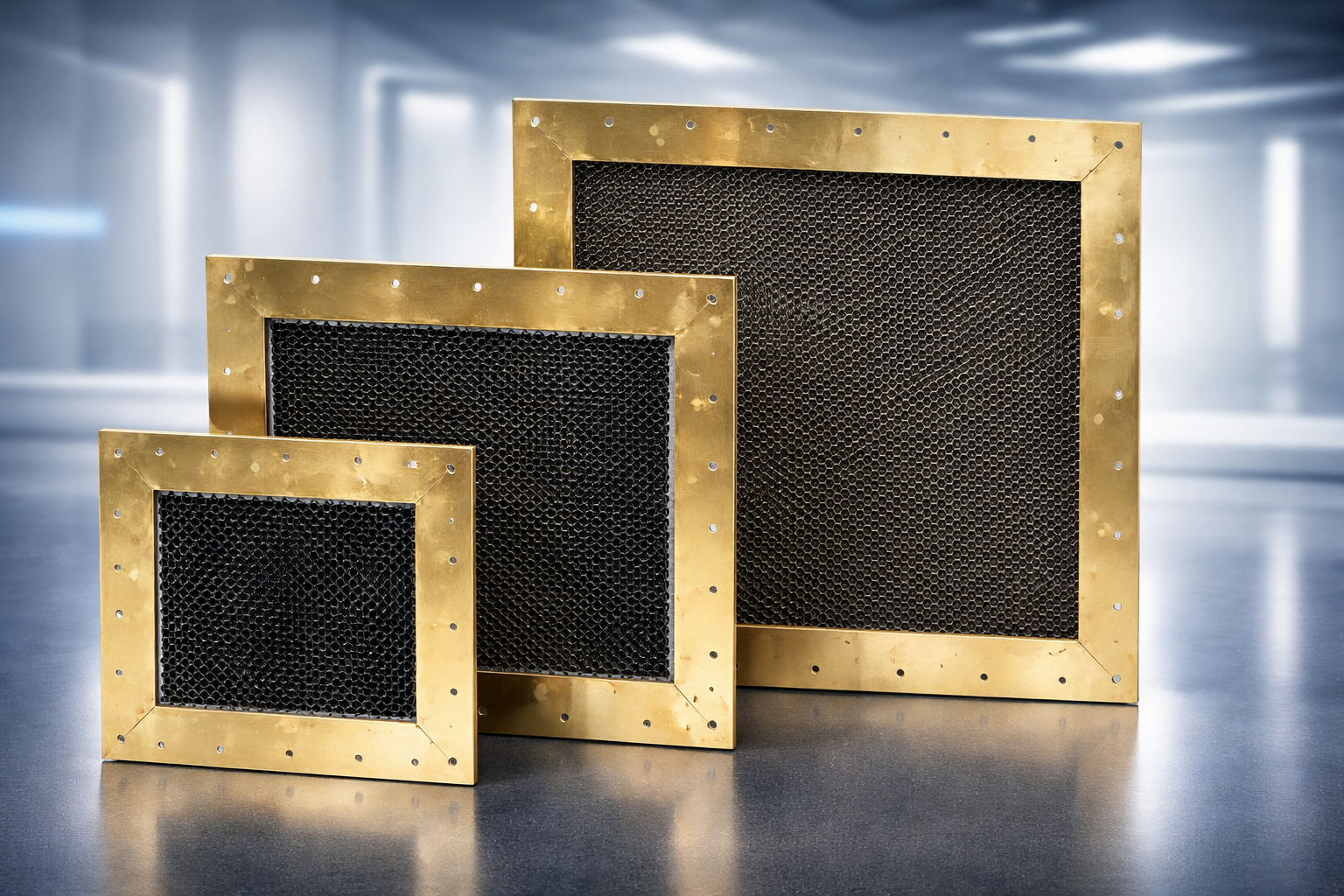

RF Waveguides & Power Filters
Waveguide and power filter solutions that are precise, compliant, and built to pass review the first time. We handle the full lifecycle—design engineering, modeling and calculations, detailed drawings, manufacturing, and on-site installation/coordination—so your projects stays on schedule, on budget, and RF and power integrity stay exactly where they’re supposed to.

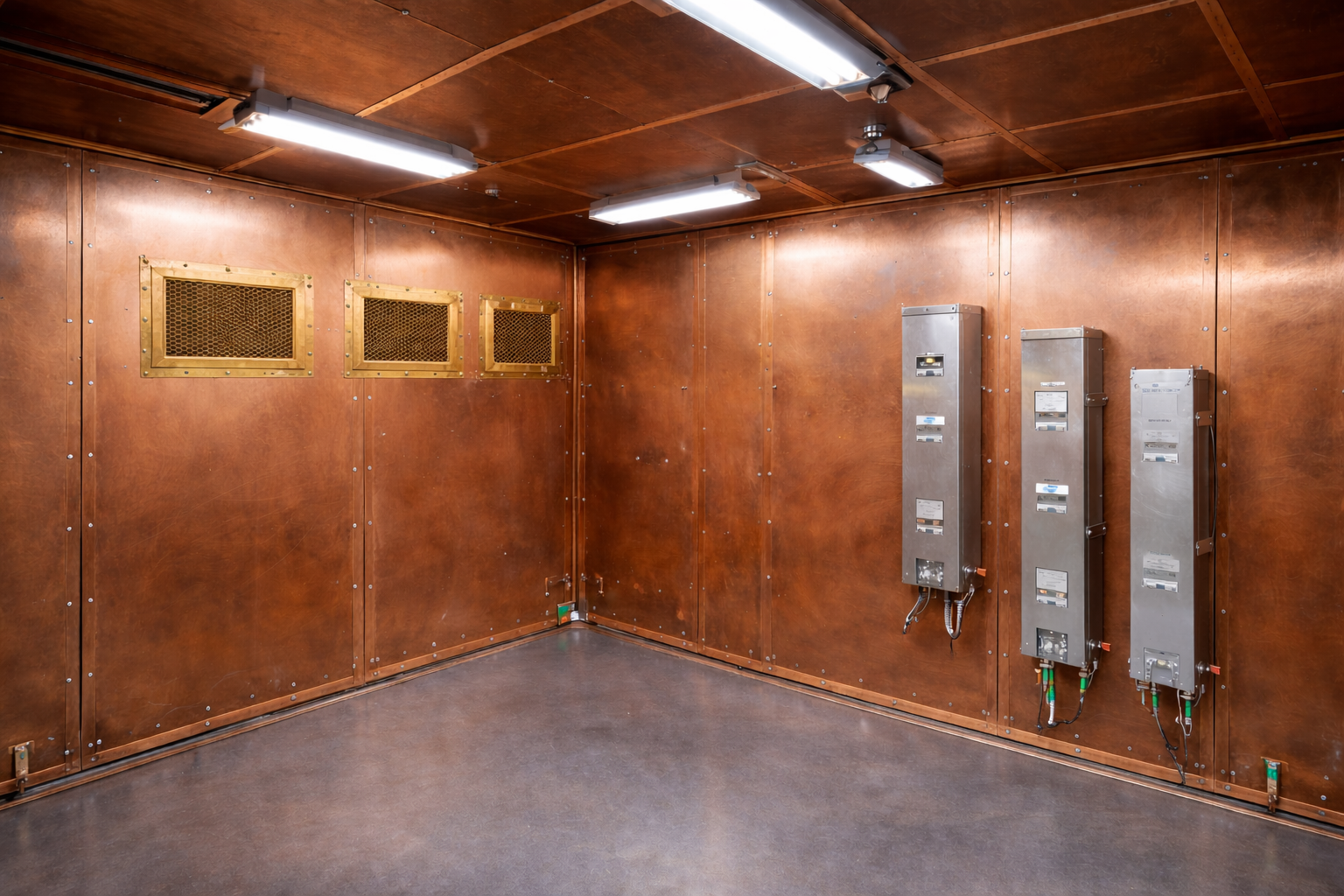

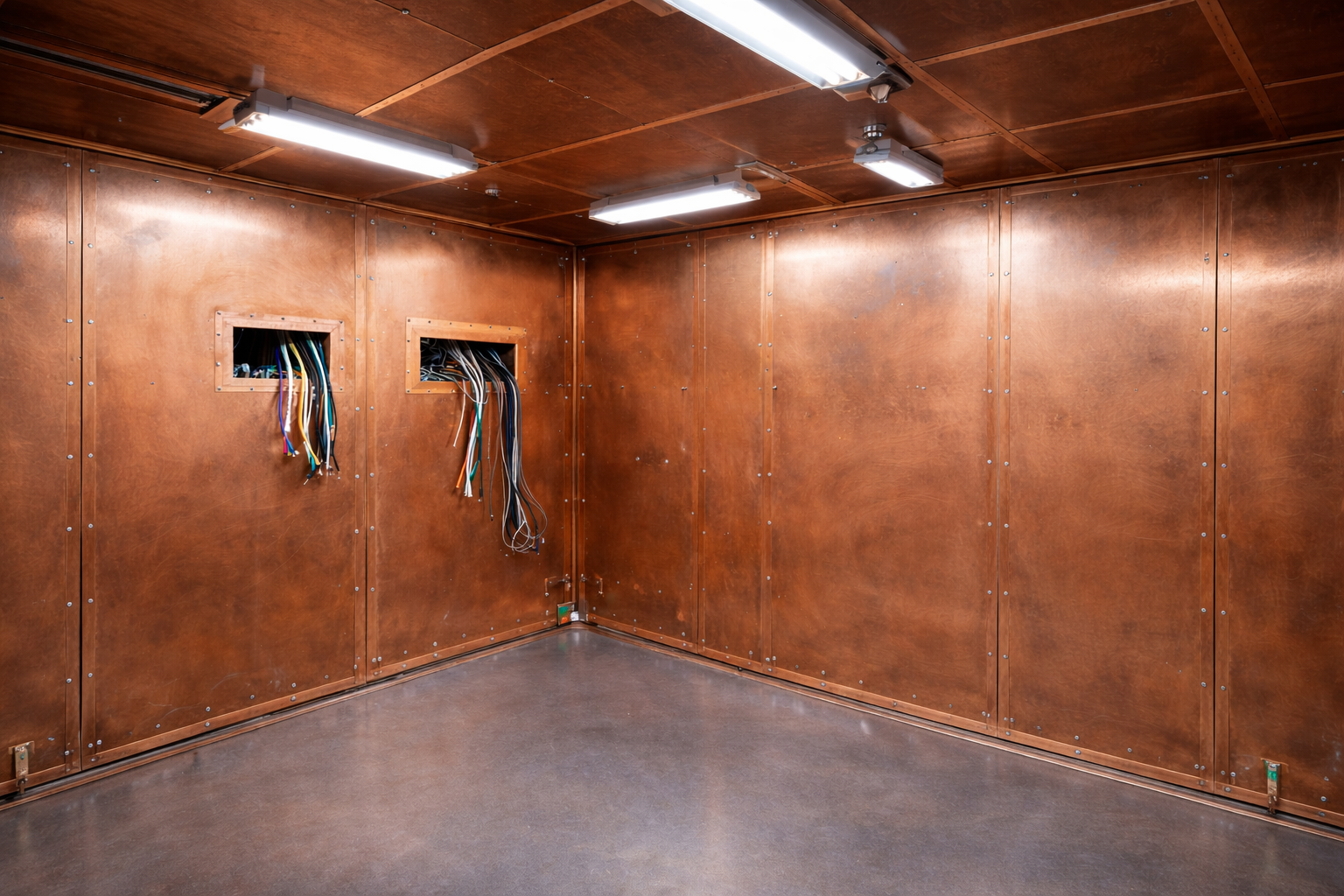

Before/After
Designed for compliance. Built for performance.
We deliver complete waveguide and RF power filter packages—engineering, calculations, fabrication details, and coordination—to support installation, testing, and final acceptance.
By the numbers
Experts in Waveguides & Filters
Proven experts in RF waveguide and power filters —from first calculation to final closeout. Fast turnarounds, clean coordination, predictable outcomes.
One team, from concept to closeout
Don’t gamble with RF integrity, EMI compliance, or your schedule by treating waveguides and power filters as afterthoughts.
Fewer Change Orders, Smoother Construction
Our waveguide and power filter solutions are built for constructability—clean layouts, coordinated penetrations, and practical installation details. That means fewer surprises in the field, less rework, and tighter control over electrical, shielding, and construction impacts.
Code-Ready, OEM-Ready Deliverables
We produce engineering, calculations, and drawings aligned with MRI manufacturer requirements, applicable standards, and local codes—creating a clear path to OEM review, AHJ approval, testing, and final signoff.
Faster Turnarounds for New Builds and Retrofits
Whether you’re building a new MRI suite or upgrading an existing room, we move quickly from site constraints to a buildable package—so procurement, fabrication, and installation stay on track.
Coordination for Shielding, MEP, and Field Interfaces
Waveguides and power filters succeed or fail at the interfaces—shielding walls, conduit runs, grounds, equipment rooms, and service access. We coordinate across trades to make sure everything fits, installs cleanly, and performs the first time.
FAQ: Waveguides & Power Filters

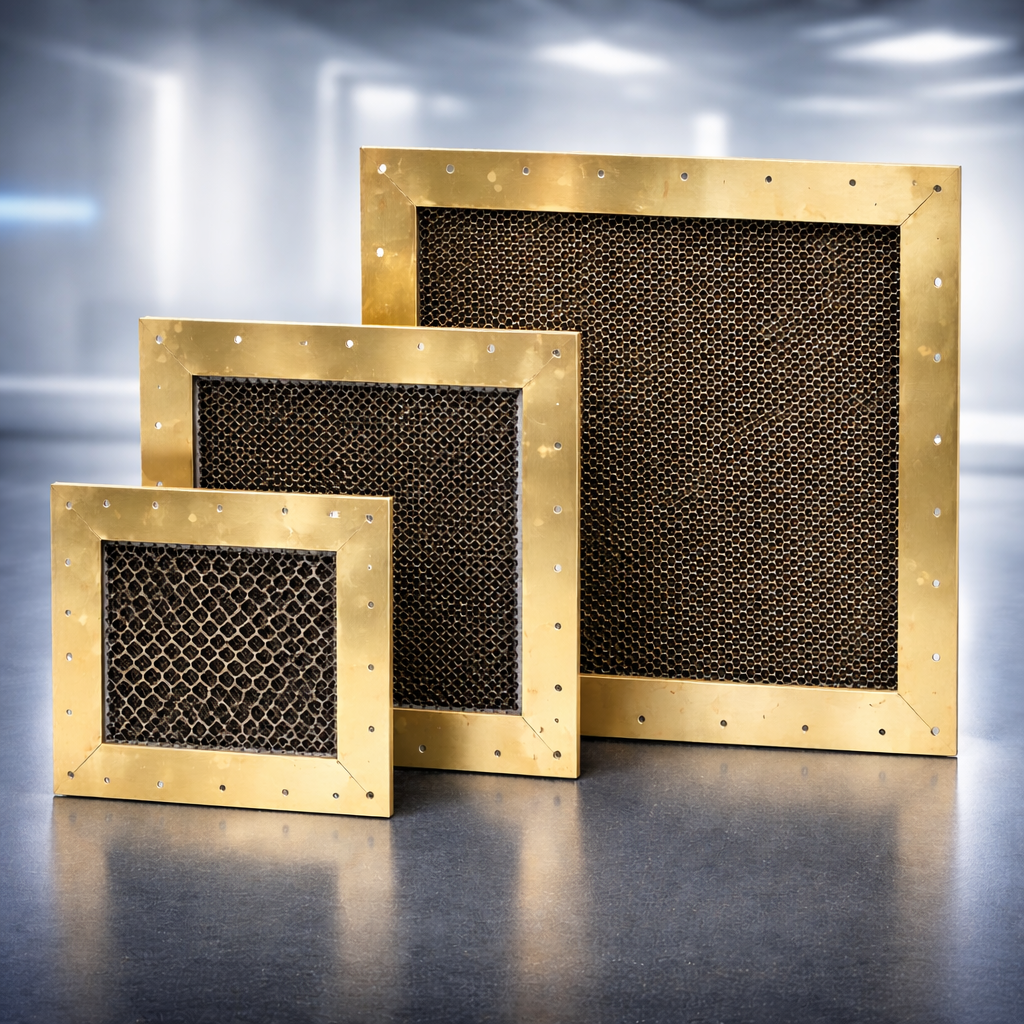

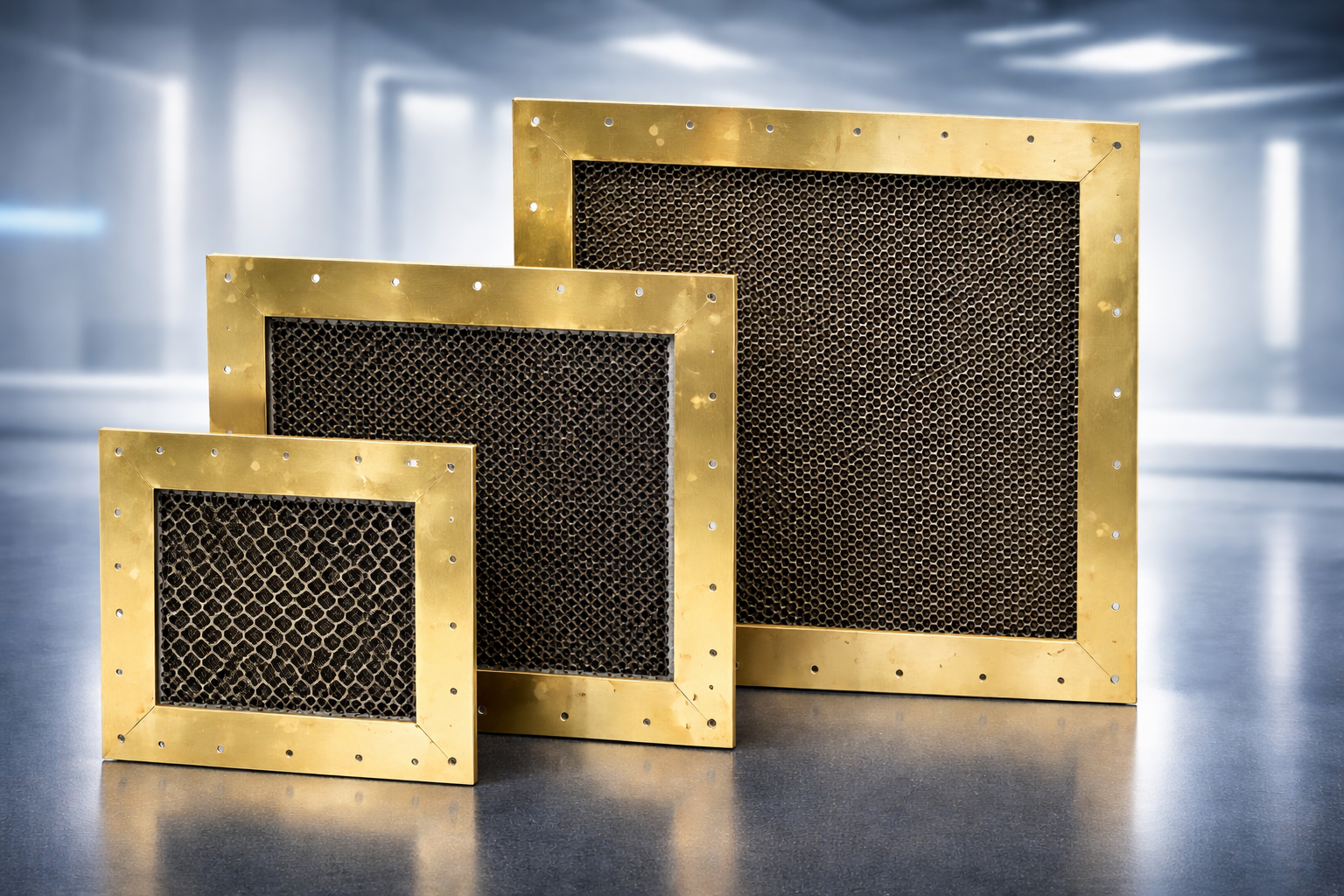

A waveguide provides a controlled path for air or services to pass through a shielded or sensitive enclosure while helping maintain electromagnetic (EMI/RFI) performance. You typically need one anywhere a penetration is required but you still need to preserve shielding integrity and predictable attenuation.

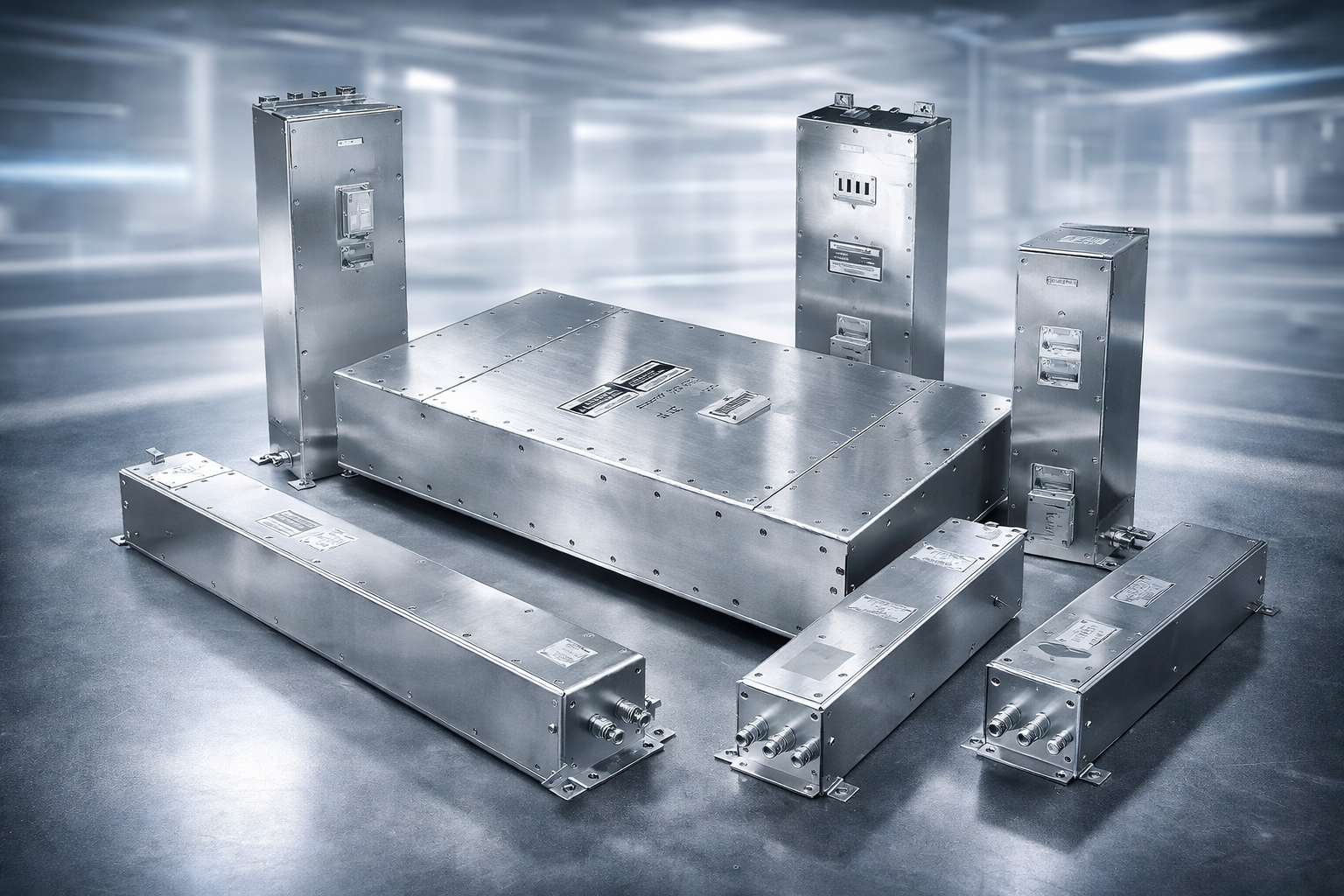

An RF power filter reduces unwanted high-frequency noise traveling on power lines. It helps prevent interference from entering or leaving an enclosure through electrical conductors, improving system stability and signal performance while still delivering the required power.
In most projects, the essentials are: (1) performance targets (shielding effectiveness/attenuation), (2) penetration needs (airflow, cable/pipe routing, size constraints), (3) electrical requirements (voltage, current, phases, grounding), and (4) installation constraints (mounting, access, environment). With these inputs, an engineer can select or design components that fit, install cleanly, and meet compliance and testing requirements.
Let's Work Together
We’ll partner with you to deliver simple, effective, customizable solutions that improve the healthcare experience and maximize ROI.
